ER Generation X

Up to 30% more capacity performance (avg. across temperatures vs. competition)

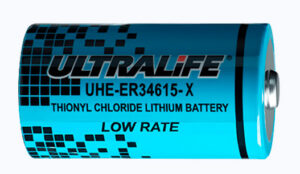

ER Generation X products

  • Choose between high rate cells that offer high continuous/pulse current Amp load capability at lower Ah capacity or low rate cells that offer higher Amp hour capacity but lower Amp current rating.
  • Differing cell sizes and rates meet many application needs.
  • ULTRALIFE’s ER Generation X family of Lithium Thionyl Chloride cells offer a high energy density of more than 400 Whr/Kg.
  • ER Cylindrical cells have a wide operating temperature range of -55°C to +85°C.
  • Designed with safety in mind, all cells utilize a non-flammable electrolyte, and select models include integrated PTC short-circuit protection for added safety.
  • Certified to recognized safety and transportation standards, with select cells meeting UL 1642 and UN 38.3 requirements.
  • Technician-replaceable cells simplify maintenance and minimize downtime.
  • For bespoke applications with higher voltage or capacity needs, our engineers can integrate ULTRALIFE’s ER Cylindrical cells into battery packs (contact us for details).

Voltage (Range)

3.65V

Capacity (Range)

2Ah – 19Ah

Energy (Range)

7.3Wh – 69.4Wh

Weight (Range)

18g – 108g

Product Nominal Voltage Rated Capacity Rated Energy Weight Size Note Tech Data Sheet
UHE-ER14505-X 3.65V 2.4Ah 8.8Wh 18g AA size Low Rate UHE-ER14505-X TDS
UHE-ER26500-X 3.65V 9Ah 32.9Wh 56g C size Low Rate UHE-ER26500-X TDS
UHE-ER34615-X 3.65V 19Ah 69.4Wh 105g D size Low Rate UHE-ER34615-X TDS
UHR-ER14505-X 3.65V 2Ah 7.3Wh 19g AA size High Rate UHR-ER14505-X TDS
UHR-ER18505-X 3.65V 3Ah 11Wh 35g A size High Rate UHR-ER18505-X TDS
UHR-ER26500-X 3.65V 6.5Ah 23.7Wh 58g C size High Rate UHR-ER26500-X TDS
UHR-ER34615-X 3.65V 14.5Ah 52.9Wh 108g D size High Rate UHR-ER34615-X TDS
UHE-ER26500-X2 3.65V 7.5Ah 27.4Wh 52g C size Low Rate – Gen X2 – Vent for Gas Metering UHE-ER26500-X2 TDS
UHE-ER34615-X2 3.65V 16.5Ah 60.2Wh 108g D size Low Rate – Gen X2 – Vent for Gas Metering UHE-ER34615-X2 TDS
UHR-ER26500-X2 3.65V 6Ah 21.9Wh 60g C size High Rate – Gen X2 – Vent for Gas Metering UHR-ER26500-X2 TDS
UHR-ER34615-X2 3.65V 14Ah 51.1Wh 106g D size High Rate – Gen X2 – Vent for Gas Metering UHR-ER34615-X2 TDS
