MRC-67 Series

MRC-67A/B Tactical Speaker, Amplified

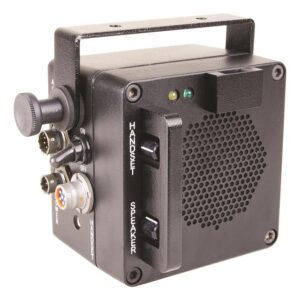

MRC-67 Series productMRC-67 series amplified speakers are rugged, waterproof audio speaker systems made to withstand tactical environments. The MRC- 67 series will monitor a single transceiver and/or encryption unit. They are compatible with virtually any communication systems using the standard transceiver interface audio connections. A variety of power input configurations and colors are available.

DC Input

10-36VDC

Audio Input

1.6V RMS

Audio Output

5 watts max

Audio Band Pass

300Hz to 3000Hz

Radios Supported

  • Multiband Networking Manpack Radio
  • Wideband HF/VHF Manpack Radio
  • SINCGARS
  • Tactical Manpack Radio
  • Combat Net Radio
  • Multi-Channel Manpack Radio
  • Tactical Handheld Radio
  • Headquarters
  • HQ Installations
  • Command Post
  • Tactical Operations Center
  • Vehicle Intercom

All Speakers

Related Products

Weight 3.6 lbs
DC Input 10 to 36 VDC
Operating Temperature -50 to 70 °C
Storage Temperature -70 to 85 °C
Operating Altitude 15,000 ft
Storage Altitude 55,000 ft
Immersion 10 ft
Radio Type AN/PRC-117G, AN/PRC-138, AN/PRC-148, AN/PRC-152, AN/PRC-154, MBITR II

The MRC-67 series is ideal for tactical operations centers, SOTM systems, and vehicle use. The MRC-67 series’ rugged construction provides audio monitoring in the most demanding tactical environments.

  • Embedded 5-watt audio amplifier
  • Automatic muting when handset is keyed
  • Speaker and handset volume controls
  • Power and receiver audio active LED indicators
  • Wide range DC input power
  • Easy installation and operation
  • Compatible with existing communications equipment
  • Local handset fully functional regardless of power switch setting
  • Optional cable sets available for: remote operation, battery operation or alternate power source connections
  • DC Power Cable 6ft (Optional Part Number: MRC67A-23-072)
  • DC Power Cable 15ft (Optional Part Number: MRC67A-23-180)
  • DC Power Cable 20ft (Optional Part Number: MRC67A-23-240)
  • DC Power Cable 50ft (Optional Part Number: MRC67A-23-600)
  • Audio Cable 6ft (Optional Part Number: MRC67A-24-072)
  • Audio Cable 15ft (Optional Part Number: MRC67A-24-180)
  • Audio Cable 20ft (Optional Part Number: MRC67A-24-240)
  • Audio Cable 50ft (Optional Part Number: MRC67A-24-600)
  • AC-DC Power Adapter (Optional Part Number: MRC67A-00-12)
  • DC power cable w/ Alligator and Banana Clips 6ft (Optional Part Number: MRC67A-00-26)
  • DC power cable to xx90 series battery 6ft (Optional Part Number: MRC67A-00-30)
