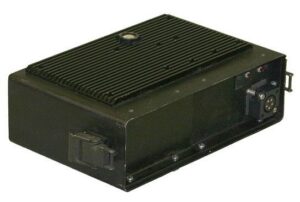

MRC-99-1 and -02
Transceiver Power Supply, AC/DC, Wide Form Factor
The MRC-99 is a series of units providing directly connected interoperable power and charging to the following radios:- AN/PSC-5 Series
- AN/PRC-117F
- AN/PRC-150 Transceiver
- AN/PRC-138 Series Transceivers
- AN/URC-200 Series Transceivers
Compatible Radios
PRC-117F & 150, PSC-5
Function
Power & Charging
Input
9–36VDC / 95–265VAC
Battery
Varies by Variant
Weight 3.75 lbs
DC Input 9 to 36 VDC
DC Output 26.5 VDC
Operating Temperature -30 to 55 °C
Storage Temperature -50 to 65 °C
Operating Altitude 27,000 ft
Storage Altitude 55,000 ft
Immersion 10 ft
AC Input 95 to 265 VAC
Radio Type AN/PRC-117F, AN/PRC-138, AN/PSC-5, AN/PRC-150, AN/PSC-5D, AN/URC-200
- Continuous Operation via AC AND DC power modules sized to allow continuous transceiver operation.
- Wide range of AC and DC input voltages allows for nearly any AC or DC power source likely to be encountered worldwide.
- Auxiliary 26.5 VDC output
- Allows operation of transceiver independently of external power source.
- The internal charger allows recharging while the transceiver is operating.
- AC Input Cord 6ft (Included Part number: PCP-35-00-01)
- DC Input Cord 6ft (Included Part number: PCP-65-00-01)
Additional Options
- DC Automobile Adapter 6ft (Optional Part number: PCP-55-00-01 Auto)
- NATO input cable (Optional Part number: PCP235)
- DC Power Cable (Optional Part number: PCP40-00-01)
