MRC-92

Transceiver Power Supply, AC/DC, Wide Form Factor

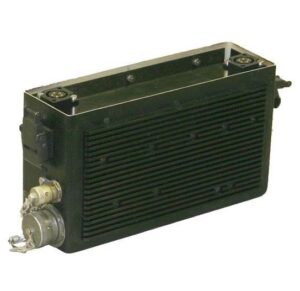

MRC-92 productWe developed the MRC-92 for transceiver applications that require greater than five amps output.

Compatible Transceivers

PRC-117F & 150, PSC-5

Output

26.5VDC @ 5.5A

Input

9–36VDC / 95–265VAC

Power

High Current Output

Radios Supported

  • Multiband Networking Manpack Radio
  • Wideband HF/VHF Manpack Radio
  • SINCGARS
  • Tactical Manpack Radio
  • Combat Net Radio
  • Multi-Channel Manpack Radio

All Power Supplies

Related Products

Weight 4.8 lbs
DC Input 9 to 36 VDC
DC Output 26.5 VDC
Operating Temperature -50 to 55 °C
Storage Temperature -50 to 65 °C
Operating Altitude 27,000 ft
Storage Altitude 55,000 ft
AC Input 95 to 265 VAC
Radio Type AN/PRC-138, AN/PSC-5, AN/PRC-150, AN/PSC-5D

  • Wide range of AC and DC input voltages
  • Allows for operation from virtually any AC or DC power source
  • High power output greater than 5 amps
  • External 26.5 VDC output for amplified speakers or other 26.5 VDC applications
  • Direct connection to:
    • AN/PRC-117F Transceiver
    • AN/PSC-5D Transceiver
    • AN/PSC-5 Series Transceivers
    • AN/PRC-138 Series Transceivers
    • AN/PRC-150 Transceiver
    • AN/PRC-113 Series Transceivers
    • AN/URC-200 Series Transceivers
Included

  • AC Input Cord 6ft (Included Part number: PCP-35-00-01)
  • DC Input Cord 6ft (Included Part number: PCP-65-00-01)

Additional Options

  • DC Automobile Adapter 6ft (Optional Part number: PCP-55-00-01 Auto)
  • NATO input cable (Optional Part number: PCP235)
  • DC Power Cable (Optional Part number: PCP40-00-01)
