LiMN02 Military Packs

Durable battery packs with hermetically sealed nickel-plated steel cells

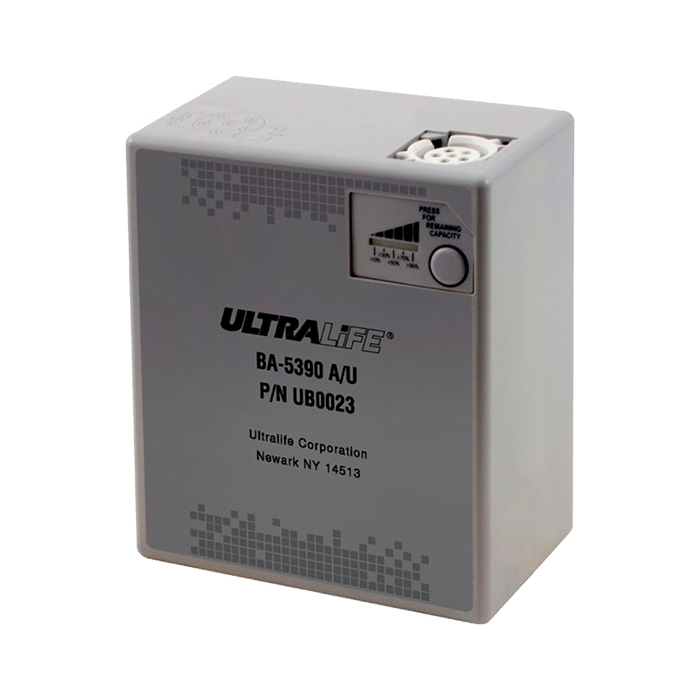

LiMnO2 Military Packs products

  • Comprehensive range of 6V, 13.5V, and dual voltage 15V / 30V lithium manganese dioxide battery packs.
  • Delivers high energy density, long operating life and up to 10 years shelf life, providing a lightweight and reliable alternative to traditional military battery formats.
  • Engineered for harsh environments with operating temperature capabilities ranging from -40°C to +72°C (model dependent).
  • Integrated State-of-Charge Indicator and Complete Discharge Device (CDD) help maximize battery utilization and provide a visual end-of-life indication.

Voltage (Range)

6.0V – 30V

Capacity (Range)

10.0Ah – 22.2Ah

Energy (Range)

66.6Wh

Weight (Range)

380g

Product Nominal Voltage Rated Capacity Rated Energy Weight Size Note Tech Data Sheet
UB0016 6.0V 11.1Ah 66.6Wh 380g 95.3mm L x 64.8mm W x 38.1mm D UB0016 TDS
UB0020 13.5V 10.0Ah 135Wh 800g 66.5mm L x 209.3mm W x 40.9mm D UB0020 TDS
UB0023 30V 11.1Ah 333Wh 1.3kg 127mm L x 111.8mm W x 62.2mm D UB0023 TDS
15V 22.2Ah
