Wearable & Body Worn Pack Chargers

From tactical chargers to desktop and solar chargers

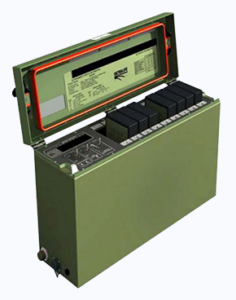

Wearable & Body Worn Pack Chargers products

  • ULTRALIFE produces chargers for its Lightweight Wearable Packs that can charge between one and twelve batteries.
  • Includes soldier-based and vehicle-based chargers.
  • Designed for global use, select chargers accommodate a broad range of input voltages and frequencies.
  • Most are designed to military specifications, in a range of military colors.

No. of Batteries

1 to 12

Approx. Weight

170g – 42.2kg

Output Voltage

12.6VDC – 20VDC

Product Input Voltage Type Number of Batteries Approx. Weight Output Voltage Note Tech Data Sheet
CH0006 DC 3 6.35kg 16.8VDC Compatible with UBBL06-01 & -02 and UBBL08 & -01 CH0006 TDS
CH0008 AC 1 1.5kg 16.8VDC Compatible with UBBL06-01 & -02, UBBL08 & -01 and UBBL35 CH0008 TDS
CH0012 DC 12 17.24kg Contact Ultralife Compatible with UBBL06-01 & -02 and UBBL08 & -01 CH0012 TDS
CH0015 DC 1 170g 16.8VDC Compatible with UBBL06-01 & -02, UBBL08 & -01 and UBBL35 CH0015 TDS
CH0017-XX AC / DC 12 42.2kg Contact Ultralife Compatible with UBBL06-01 & -02 and UBBL08 & -01 (order -01 for North America, -02 for Australia, -03 for United Kingdom, -04 for Europe & -05 for Australia 10A) CH0017 TDS
UCH0070XX AC 8 1.90kg 20VDC max Compatible with UBBL06-01 & -02 and UBBL08 & -01 (order US suffix for North America or EU suffix for Europe) (can set batteries to 30% state-of-charge for shipment by air) UCH0070 TDS
UCH0072XX AC 2 0.49kg 20VDC max Compatible with UBBL06-01 & -02 and UBBL08 & -01 (order US suffix for North America or EU suffix for Europe) (can set batteries to 30% state-of-charge for shipment by air) UCH0072 TDS
UCH0041 DC 3 6.35kg Contact Ultralife Compatible with UBBL06-01 & UBBL08 UCH0041 TDS
UKT0037-01 PV 1 2.26kg 16.8VDC Compatible with UBBL06-01 & UBBL08 UKT0037-XX TDS
UKT0037-02 PV 1 2.26kg 16.8VDC Compatible with UBBL06-01 & UBBL08 UKT0037-XX TDS
UKT0037-03 PV 1 2.26kg 16.8VDC Compatible with UBBL06-01 & UBBL08 UKT0037-XX TDS
UKT0038-01 PV N/A 1.7kg N/A Solar conversion kit for existing CH0008 charger owners (CH0008 sold separately), Compatible with UBBL06-01 & UBBL08 UKT0038-XX TDS
UKT0038-02 PV N/A 1.7kg N/A Solar conversion kit for existing CH0008 charger owners (CH0008 sold separately), Compatible with UBBL06-01 & UBBL08 UKT0038-XX TDS
UKT0038-03 PV N/A 1.7kg N/A Solar conversion kit for existing CH0008 charger owners (CH0008 sold separately), Compatible with UBBL06-01 & UBBL08 UKT0038-XX TDS
UKT0039-01 PV 1 2.26kg 12.6VDC Compatible with PRC-148 & PRC-152 radio batteries UKT0039-XX TDS
UKT0039-02 PV 1 2.26kg 12.6VDC Compatible with PRC-148 & PRC-152 radio batteries UKT0039-XX TDS
UKT0039-03 PV 1 2.26kg 12.6VDC Compatible with PRC-148 & PRC-152 radio batteries UKT0039-XX TDS
