MRC-UVA-V1

Universal Vehicle Adapter, Handheld Radio Charger

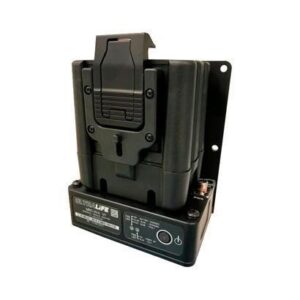

MRC-UVA-V1 productThe MRC-UVA-V1 Universal Vehicle Adapter is the ultimate handheld radio docking and charging solution for vehicle communications. Now you can use the same handheld radio, mounted or dismounted. It is designed for “jerk-and-run” scenarios, and is compatible with widely fielded radios from Thales® and others.

The MRC-UVA-V1 can be used in tactical or non-standard vehicles to provide radio mounting and charging. As an added safety feature, the MRC-UVA-V1 monitors various parameters of the battery via the SMBus and DQ communication channel to assure safe battery charging.

Input Voltage

10–40VDC

Compatible Radios

PRC-148, 152 & 163, & MBITR II

Mount

Vehicular Dock & Charge

RELIABILITY

>15,000 hours

Radios Supported

  • Wideband Networking Handheld Radio
  • Tactical Handheld Radio
  • Multi-Channel Handheld Radio
  • Team Radio
  • Multiband Intra Team Radio
  • Tactical Handheld Radio
  • Combat Net Radio

All Amplifier Mounts

Related Products

Voltage (Nominal) 12.5 V
Certifications MIL-STD-1275, MIL-STD-810E, MIL-STD 461
Weight 2.5 lbs
Operating Temperature -30 to +49 °C
Radio Type AN/PRC-148, AN/PRC-152, AN/PRC-163, MBITR II

The MRC-UVA can be used in tactical or non-standard vehicles to provide radio mounting and charging. As an added safety feature, the MRC-UVA monitors the radio battery and discontinues charging if an overtemperature condition exists.

Key Features
Universal charging pocket supports 16 radios, including variants:

• Thales® AN/PRC-148 MBITR
• Thales® AN/PRC-148 JEM
• AN/PRC-152 and all variants
• Harris® AN/PRC-163
• Advanced microprocessor
• External software updating
• Advanced SMBus + DQ communication
• Army Leader Radios from Thales® & Harris®
• Supports simultaneous two channel radio operation + charging

Included

  • DC Input Power cable 15ft (Part number: 1302-000-701)
