UBI-2590s (Li-ion)

Smart and non-smart batteries for military and industrial use.

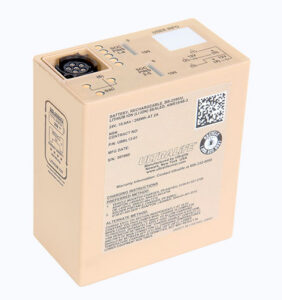

UBI-2590s (Li-ion) product

  • ULTRALIFE’s rechargeable UBI-2590 Lithium-ion (Li-ion) batteries are widely used in military communications equipment and are also available in commercially labeled versions for a broad range of industrial applications.
  • Smart and non-smart options are available to suit many budgets and needs.
  • Packs can be used in ‘series’ (higher voltage) or ‘parallel’ (higher capacity) mode.
  • Nominal energy ranges from 250 to 288Wh (battery and discharge rate dependent).
  • Using SMART CIRCUIT™ technology, UBI-2590 batteries can accurately measure and display variables such as the state-of-charge, state-of-health, time-to-empty, voltage, current and temperature.
  • Military versions are designed to meet the latest MIL-PRF-32383/3(CR) specification.
  • Chargers, cables and accessories are also available (contact us for details).

Voltage (Nominal)

10.8V – 28.8V

Capacity (Range)

5.8Ah – 23.2Ah

Energy (Range)

63Wh – 288Wh

Weight (Range)

750g – 1.5kg

Product Nominal Voltage Rated Capacity Rated Energy Weight Size Note Tech Data Sheet
UBBL02-01 14.4V / 28.8V 17.4Ah / 8.7Ah 250.6Wh 1.3kg 127mm L x 112.5mm W x 63mm D Non-smart with SOCI UBBL02-01 TDS
UBBL02-01-CB 14.4V / 28.8V 17.4Ah / 8.7Ah 250.6Wh 1.3kg 127mm L x 112.5mm W x 63mm D Non-smart with SOCI UBBL02-01-CB TDS
UBBL09-01 10.8V / 21.6V 23.2Ah / 11.6Ah 250Wh 1.4kg 127mm L x 112.5mm W x 63mm D Lower Voltage Smart Battery UBBL09-01 TDS
UBBL10-01 14.4V / 28.8V 17.4Ah / 8.7Ah 250.6Wh 1.4kg 127mm L x 112.5mm W x 63mm D Smart Battery with SMBus & SOCI UBBL10-01 TDS
UBBL10-01-CB 14.4V / 28.8V 17.4Ah / 8.7Ah 250.6Wh 1.4kg 127mm L x 112.5mm W x 63mm D Smart Battery with SMBus & SOCI UBBL10-01-CB TDS
UBBL13-01 14.4V / 28.8V 20.0Ah / 10.0Ah 288Wh 1.5kg 127mm L x 111.5mm W x 62.2mm D High Capacity Smart Battery with SMBus & SOCI UBBL13-01 TDS
UBBL13-01-CB 14.4V / 28.8V 20.0Ah / 10.0Ah 288Wh 1.5kg 127mm L x 111.5mm W x 62.2mm D High Capacity Smart Battery with SMBus & SOCI UBBL13-01-CB TDS
UBBL62 10.8V / 21.6V 11.6Ah / 5.8Ah 63Wh (2X) 750g 79.3mm L x 111.5mm W x 62mm D Short Format Dual Voltage Battery UBBL62 TDS
