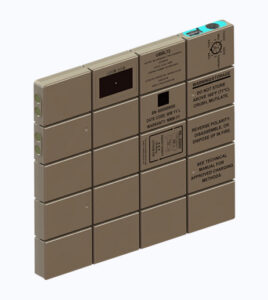

Lightweight Wearable (Li-ion)

Lightweight batteries that can be housed in a magazine pouch or belt/body-worn.

Lightweight Wearable (Li-ion) products

  • Using a power distribution manager, one or two Lightweight Wearable Packs can power many devices, such as flashlights, radios, or GPS computers.
  • This allows soldiers in dismounted close combat (DCC) to carry up to four times fewer batteries, reducing the weight from 10Kg to 2Kg.
  • Using SMART CIRCUIT™ technology, Lightweight Wearable Packs can accurately measure and display variables such as state-of-charge, state-of-health, time-to-empty, voltage, current, and temperature.
  • A range of chargers, cables, and accessories are also available (contact us for details).

Voltage (Nominal)

14.4V – 16.8V

Capacity (Range)

5.5Ah – 13.2Ah

Energy (Range)

83.6Wh – 195.8Wh

Weight (Range)

525g – 1.2kg

Product Nominal Voltage Rated Capacity Rated Energy Weight Size Note Tech Data Sheet
UBBL06 16.8V 9.4Ah 143Wh 1.0kg 209.6mm L x 73.7mm W x 42.2mm D Fits in Magazine Pouch UBBL06 TDS
UBBL06-01 16.8V 11.4Ah 173.3Wh 950g 209.6mm L x 73.7mm W x 42.2mm D Fits in Magazine Pouch UBBL06-01 TDS
UBBL06-02 16.8V 13.2Ah 195.8Wh 950g 209.6mm L x 73.7mm W x 42.2mm D Fits in Magazine Pouch UBBL06-02 TDS
UBBL08 15.2V 5.5Ah 83.6Wh 525g 132.1mm L x 73.4mm W x 42.2mm D Fits in Magazine Pouch UBBL08 TDS
UBBL08-01 15.2V 6.8Ah 103.4Wh 525g 132.1mm L x 73.4mm W x 42.2mm D Fits in Magazine Pouch UBBL08-01 TDS
UBBL35 14.4V 7.3Ah 105.1Wh 960g 203.2mm L x 228.6mm W x 16.5mm D First-Gen Conformal Body-Worn Battery UBBL35 TDS
UBBL72 14.8V 10.8Ah 159.1Wh 1.2kg 218.7mm L x 193.8mm W x 17.3mm D Next-Gen Conformal Body-Worn Battery UBBL72 TDS
