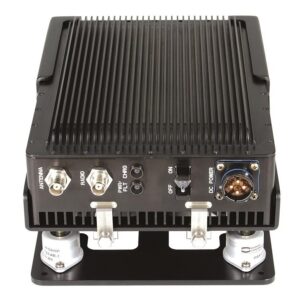

A-350
Multiband Amplifier, Vehicular, 50 Watt, 30-512 MHz
We designed the A-350 amp to be the most consistent, high-performance, fixed base or vehicle mounted 50-watt amplifier available in the 30-512 MHz frequency range.
Anything that lightens the load when you are on the move is advantageous. With shock tray included, the A-350 amp weighs less than 10 pounds.
Like all our amps, it is HAVEQUICK and SINCGARS compatible, as opposed to many other amps that are merely capable. Another important distinction is our exceptional harmonic filtering and auto-sensing frequency hopping technology. As a result, the A-350 does not inadvertently jam or desensitize other communication nets operating in the same area.
More than Quality Control
All our amplifiers come with a three year warranty. Each unit is put through vigorous testing and analysis prior to shipment. When you power up this amp, be confident that you get the performance you expect … not part of the time, all of the time.
Frequency Range
30 – 512 MHz
RF Input
3-8 watts
RF Output (FM)
50W
RF Output (AM)
50W
- Weight 10 lbs
- Operating Temperature -40 to 60 °C
- Frequency Range 30 to 512 MHz
- RF Input 3 to 8 watts
- RF Output 50 watts
- Radio Type AN/PRC-117G, AN/PRC-138, AN/PSC-5, AN/PRC-148, AN/PRC-152, AN/PSC-5D, MBITR II
Fixed-base and vehicle mounted applications requiring 50-watt radio amplification.
- Combat proven
- Radio-agnostic
- SATCOM compatible
- True HAVEQUICK & SINCGARS compatibility
- MIL-STD 810F & 461E compliant
- Compatible with AN/PRC-148 MBITR, and all variants of AN/PRC-152 radios
- Including shock mount tray, weighs less than 10 lbs.
- Sealed, watertight & weather-resistant
- Includes easy-to-install shock and vibration mounting tray
- Fault/Status monitoring
- Accepts standard MBITR cables
- Three year warranty
