MRC-UVA

Universal Vehicle Adapter, Hand-held Radio Charger

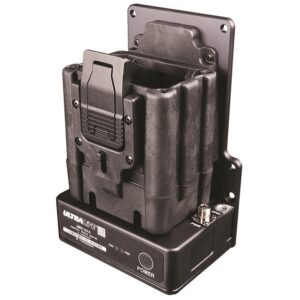

MRC-UVA productThe MRC-UVA Universal Vehicle Adapter provides a flexible vehicle docking and charging solution for handheld radios. It enables operators to use the same radio whether mounted in a vehicle or carried on dismounted missions. Designed for rapid “jerk-and-run” operations, the MRC-UVA supports a broad range of widely deployed radios from Harris, Thales, and other manufacturers. Its universal charging pocket accommodates up to 16 radio models and variants.

New Version Available: MRC-UVA-V1

The MRC-UVA continues to be manufactured and supported for legacy customers and platforms. However, for users operating newer-generation radios, the MRC-UVA-V1 provides several significant advantages.

  • Expanded radio compatibility, including support for the Harris AN/PRC-163 and Army Leader Radio programs, while maintaining compatibility with the broad range of radios supported by the original MRC-UVA.
  • Advanced battery communications through SMBus and DQ interfaces, enabling monitoring of multiple battery parameters for enhanced charging safety. In contrast, the MRC-UVA primarily monitors battery cell temperature.
  • An advanced microprocessor with external software updating capability, allowing the adapter firmware to be updated without hardware modification.
  • Simultaneous two-channel radio operation and battery charging, allowing supported radios to operate while docked and charging.
  • Higher power capability, with increased input power capacity (150 W versus 100 W) and a wider operating input voltage range (10–40 VDC versus 11–36 VDC).

Overall, the MRC-UVA-V1 enhances the original design with expanded radio compatibility, more advanced battery monitoring, software update capability, increased power handling, and support for simultaneous two-channel radio operation and charging.

Input Voltage

11–36VDC

Compatible Radios

PRC-148 & 152, MBITR

Mount

Vehicular Dock & Charge

Reliability

15,000 hours

Radios Supported

  • SINCGARS
  • Wideband Networking Handheld Radio
  • Tactical Handheld Radio
  • Multi-Channel Handheld Radio
  • Team Radio
  • Multiband Intra Team Radio
  • Tactical Handheld Radio
  • Combat Net Radio

All Amplifier Mounts

Related Products

Weight 2.5 lbs
Operating Temperature -30 to 49 °C
Radio Type MBITR II, AN/PRC-148, AN/PRC-152

The MRC-UVA can be used in tactical or non-standard vehicles to provide radio mounting and charging. As an added safety feature, the MRC-UVA monitors the radio battery and discontinues charging if an overtemperature condition exists.

DC Input Power cable 15ft (Part number: 1302-000-701)
