Standard Downhole MWD & LWD Packs

High-temperature lithium battery packs for downhole drilling applications

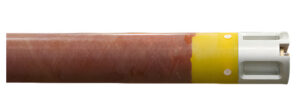

Downhole MWD & LWD Packs products

Custom Downhole Battery Solutions

Ultralife designs and manufactures custom battery packs for downhole drilling applications. Leveraging vertically integrated cell and pack engineering capabilities, we develop solutions tailored to specific tool requirements, operating environments, and performance objectives.

Standard MWD & LWD Battery Packs

In addition to custom-engineered solutions, Ultralife offers a range of proven battery packs designed for MWD, LWD, and related downhole applications. Standard configurations are available for many of the industry’s most widely used platforms.

  • Available in multiple configurations with nominal voltages from 14.4V to 36V, capacities from 15Ah to 58Ah, and energy ratings from 540Wh to 1,044Wh.
  • Designed for Measurement While Drilling (MWD) and related downhole oil and gas applications, utilizing high-temperature lithium battery technologies capable of operating in environments up to +165°C (product dependent).
  • Compatible with a range of industry platforms including APS, Tensor, Bluestar, EvoOne, Applied Physics, and Extreme Engineering systems.
  • Available with Criterion™ CR5 battery monitoring technology, providing enhanced visibility into battery usage and downhole operating conditions (product dependent).

Voltage (Range)

14.4V – 36V

Capacity (Range)

15Ah – 58Ah

Energy (Range)

540Wh – 1044Wh

Weight (Range)

2.3kg – 4.5kg

Product Nominal Voltage Rated Capacity Rated Energy Weight Size Note Tech Data Sheet
39290661.3308, 86390667.3308, 245909970 36V 150CHR-26Ah, 165CMR-28Ah, 180CHR-15Ah 936Wh, 1008Wh, 540Wh 3kg, 2.9kg, 2.6kg Contact Us APS MWD 60123, APS MWD 61167, APS MWD 60663 APS Type Battery Packs TDS
2EXL10404PLM 29V 29Ah 841Wh 2.3kg Contact Us Applied Physics with Criterion 2EXL10404PLM TDS
2EXL10518CR4 36V 28Ah 1008Wh 3.2kg Contact Us APS with Criterion 2EXL10518CR4 TDS
2EXL10000CR4 29V 29Ah 841Wh 2.6kg Contact Us Bluestar with Criterion 2EXL10000CR4 TDS
2EXL4910T 36V 29Ah 1044Wh 4.5kg Contact Us EvoOne with Criterion 2EXL4910T TDS
2EXL4601EX 14.4V 58Ah 835Wh 2.3kg Contact Us Extreme Engineering 2EXL4601EX TDS
2EXL10073CR4 29V 29Ah 841Wh 2.5kg Contact Us Tensor with Criterion 2EXL10073CR4 TDS
