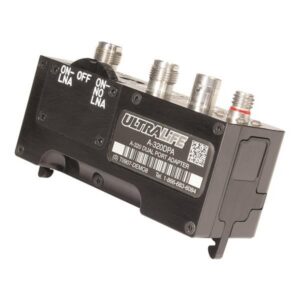

A-320DPA
Dual Port Adapter, A-320 Series Amplifiers, with LNA
We designed this simple clip on attachment in response to warfighter requests for dual port capability for their A-320 amplifiers. It fits any A-320 amplifier currently in service.
The adapter allows for simultaneous connection of two separate RF antennas for differing frequencies. It also functions as a Low Noise Amplifier (LNA) for UHF SATCOM transmission.
The lightweight A-320DPA installs without tools. When needed, operators simply clip on the A-320DPA to existing lanyard pins on the A-320 and unclip when desired. It’s that easy.
One Source, Many Solutions
The A-320 Dual Port Adapter is one example of the broad capabilities of Ultralife Communications Systems to provide products, systems and concept-to-reality solutions to the military and defense industries.
From the individual soldier to command and control, from manpack kits to system and vehicle integration, Ultralife is your one source for many solutions.
By harnessing the collective design and engineering expertise of these operating units, we can provide one source with many solutions to support the warfighter, government agencies and homeland security operations.
Frequency Range
30-512MHz
Gain
10dB
Noise Figure
<3dB
Input Voltage
18-34VDC
Weight 12 ounces
Operating Temperature 30 to 60 °C
Frequency Range 30 to 512 MHz
Radio Type AN/PRC-148, AN/PRC-152, AN/PRC-154, MBITR II
- Installs on any A-320 amplifier currently in service
- Easy clip on attachment and removal without tools
- Simultaneous connection of two separate antennas
- LNA for UHF SATCOM operation provides approximately 10dB of gain
- Utilizes existing A-320 DC power and RF cables
