MRC-83

Dual Battery Box

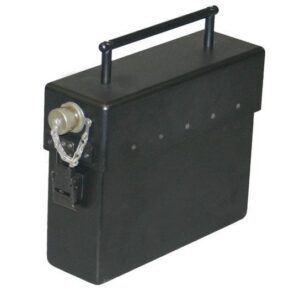

MRC-83 productFor in-the-field power operations, the MRC-83 can contain up to two of any of the BB-X90 series rechargeable batteries or the BA-5590 non-rechargeable in a rugged enclosure with one MIL-STD 8-pin circular connector. Depending upon the type of equipment requiring power, cables can be provided.

While a simple but rugged design, the combination of deep drawn aluminum housing with an outer lip seal makes the unit waterproof when the unit’s cover is closed. The top cover uses metal connectors to assure reliable matings with the various batteries and when combined with internal battery separators assure positive battery alignment.

Operating Altitude

27,000ft

Storage Altitude

55,000ft

Immersion

3ft

Compatible Batteries

2590s & More

Radios Supported

  • Field Power Supply

All Power Supplies

Dimensions 6.375”H x 2.975”W x 9.125”D
Weight 3.75 lbs
DC Output 24-33 (depending on battery) VDC
Operating Temperature -30 to +55 °C
Storage Temperature -50 to +65 °C
Operating Altitude 27,000 ft
Storage Altitude 55,000 ft
Immersion 3 ft

  • Secured output connections with MIL-STD 8-pin connector
  • Diode isolated batteries to protect back-feeding
  • Water resistant aluminum with protected output terminals
  • Batteries wired in parallel to combine current capacity of multiple batteries when longer power required
  • Optional UBI-2590 (UBBL02-01 / UBBL10-01 / UBBL13-01)
  • Optional UBI-5390A/U, UBI-5390/XC and BA-5790 (UB0023 / UB0032 / UB0036)
