MRC-UPU0003, 4 or 5

Transceiver Power Supply, AC/DC, Small Form Factor

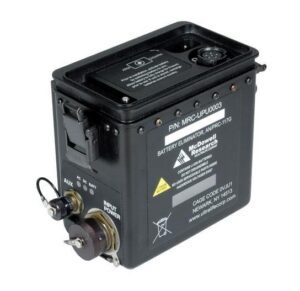

MRC-UPU0003, 4 or 5 productDesigned specifically for the AN/PRC- 117G radio, the MRC-UPU Series comes in three colors to be compatible with desired terrain areas of operation: black, olive drab, and desert tan.

Virtually any AC or DC power source is compatible with this power supply making it an ideal solution for providing uninterrupted power, anywhere. When used with the AN/PRC-117G at an 8:1:1 duty cycle, the unit provides greater than 3 hours run time. Like all Ultralife power supplies, this series is 85-250VAC/47-440 Hz ready, and has the ability to be powered from virtually any DC input source likely to be encountered in military and/or commercial vehicles. Each is MIL-STD-461E for EMI compliance and MIL-STD-810 compliant.

Optional accessories extend application flexibility beyond the two cables provided:
PCP-35 AC Input Power Cord and PCP-65 DC Input Power Cord cables.

Optional cables include PCP-55 Auto – DC automobile adapt- er; PCP-40 DC Input Cord; and MRC- 143A-07-02 NATO Input Cable.

See datasheets or contact us for model specific information

Compatible Radio

PRC-117G

Function

Uninterruptible Power

Input Voltage

10–36VDC / 85–250VAC

Battery

Internal Li-ion

Radios Supported

  • Multiband Networking Manpack Radio
  • Wideband HF/VHF Manpack Radio
  • SINCGARS
  • Tactical Manpack Radio
  • Combat Net Radio
  • Multi-Channel Manpack Radio

All Power Supplies

Related Products

Dimensions 3.9 H x 7.1 W x 5.75 D
Weight 5 lbs
Operating Temperature -31 to +60 °C
Storage Temperature -40 to +71 °C
Operating Altitude 15,000 ft
Storage Altitude 40,000 ft
Immersion MIL-STD-810G ft

The MRC-UPU Series provides power supply to the AN/PRC-117G radio transceiver in both vehicle and tactical operations.

  • Wide range of input voltages
  • Self-contained operation
  • Lightweight – 5lbs.nominal w/battery
  • SimpleArm/Disarm toggle key near output connector
  • Recharges while operating
  • Each unit carries a 3-year warranty – internal rechargeable battery packs carry 1-year warranty
  • Optional mount available
Included

  • AC Input Cord 6ft (Included Part number: PCP-35-00-01)
  • DC Input Cord 6ft (Included Part number: PCP-65-00-01)

Additional Options

  • DC Automobile Adapter 6ft (Optional Part number: PCP-55-00-01 Auto)
  • DC Power Cord 12ft (Optional Part number: PCP-40-00-144)
  • NATO Power Cord (Optional Part number: MRC143A-07-02)
  • Amplified Speaker (Optional Part number: MRC-67A)
