A-320V3A-KT

Multiband Amplifier, Dismounted, 20 Watt, 30-512 MHz, Kit

A-320V3A-KT product

The A-320V3A-KT represents the continued development of Ultralife’s combat-proven A-320KT amplifier kit.

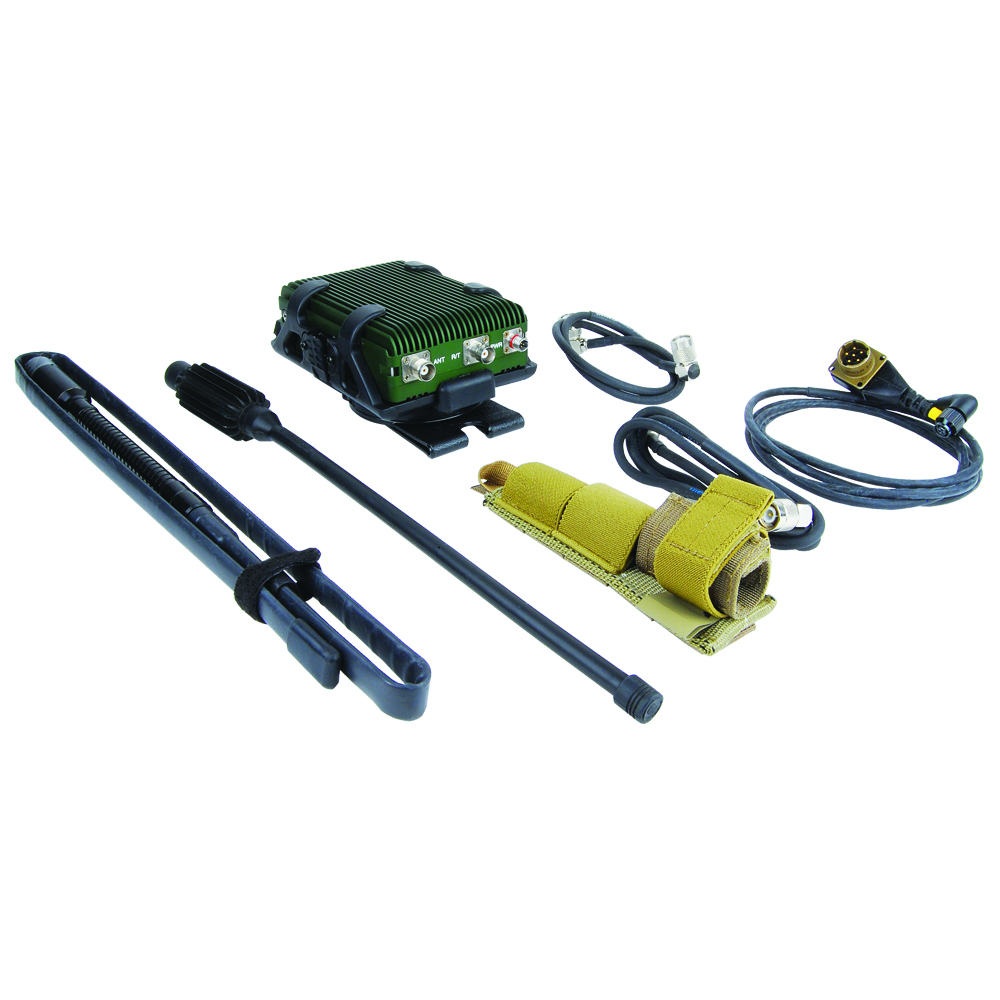

The kit includes the A-320V3A amplifier, 90-512 MHz multiband antenna, 30-108 MHz antenna, antenna mount, amplifier holster with MOLLE vest adapter, RF cables and power cable. The amplifier itself weighs a mere 24 ounces, and the entire kit weighs less than 3.1 pounds.

The A-320V3A-KT supports the latest TDMA waveforms including Soldier Radio Waveform (SRW) and Enhanced Position & Location Reporting System (EPLRS). The amplifier maintains support for legacy communications modes including HAVEQUICK, SINCGARS, and DAMA.

Included Amplifier

A-320V3A

Multiband Antenna

90-512 MHz

Blade Antenna

30-108 MHz

Antenna Mount

For Vehicle Use

Radios Supported

  • SINCGARS
  • Wideband Networking Handheld Radio
  • Tactical Handheld Radio
  • Multi-Channel Handheld Radio
  • Team Radio
  • Multiband Intra Team Radio
  • Tactical Handheld Radio
  • Combat Net Radio

All RF Amplifiers

Related Products

Frequency Range: 30 to 512 MHz
RF Input: 5 watts
RF Output: FM 20 watts
RF Output: 20 watts
Radio Type: AN/PRC-119, AN/PRC-148, AN/PRC-152, MBITR II, RT-1523E

  • 30-512 MHz
  • Supports new waveforms:
    • SRW (Soldier Radio Waveform)
    • EPLRS (Enhanced Position & Location Reporting System)
  • AM operation
Included

  • 20W Amplifier (Part number: A-320V3A)
  • 90-512 MHz Multiband Antenna (Part number: A-320-A03)
  • RF Jumper Cable – RF Connector RAD/ANT BNC/TNC female) Part number: A-320-A04)
  • Power Cable for XX90 Battery (Part number: A-320-A05)
  • Pocket Amplifier Holder (Part number: A-320-A13)
  • Mesh relocator kit (Part number: A-320-A15)
  • 30-108 MHz Antenna (Part number: LPAS-320-A04)

Additional Options

  • UBI-2590 Rechargeable Battery (Optional Part Number: UBBL02-01)
  • UBI-2590 Rechargeable Battery (Optional Part Number: UBBL10-01)
  • UBI-2590 Rechargeable Battery (Optional Part Number: UBBL13-01)
  • Desktop Charger Kit (Optional Part Number: CH0002)
  • Smart Charger for Shipping XX90 Series by Air (Optional Part Number: UCH0057-01)
  • Six-Bay Charger for Shipping XX90 Series by Air (Optional Part Number: UCH0071)
  • 2-Bay Tactical Charger for XX90 Batteries (Optional Part Number: CH0004)
  • 6-Bay Tactical Charger for XX90 Batteries (Optional Part Number: CH0003)
  • BA-5390A/U LiMnO2 Non-rechargeable Battery (Optional Part Number: UB0023)
  • UBI-5390XC LiMnO2/CFx Non-rechargeable Battery (Optional Part Number: UB0032)
