Military Non-Rechargeable Cells

Primary lithium cells for mission-critical military applications

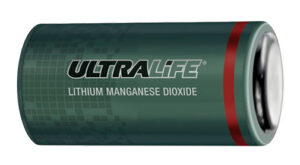

Military Non-Rechargeable Cells products

  • Available in a range of sizes, from ½ AA to C, with voltages from 3V to 12V, energy ratings from 1.5Wh to 66.6Wh, and operating temperatures from -40°C to +72°C depending on the cell type (see technical datasheets).
  • Most cells use hermetically sealed, nickel-plated steel cans to maximize safety and reliability.
  • Select cells incorporate CDD (Cell Disposal Device) indication displays that provide a visual indication when the cell should be replaced and disposed of.
  • Most cells require an ECCN 3A611.x export license before they can be exported from the U.S. (contact us for further details).

Voltage (Range)

3V – 12V

Capacity (Range)

0.5Ah – 11.1Ah

Energy (Range)

1.5Wh – 66.6Wh

Weight (Range)

10g – 390g

Product Nominal Voltage Rated Capacity Rated Energy Weight Size Note Tech Data Sheet
U10025 3V 4.8Ah 14.4Wh 61g C size U10025 TDS
UB0006 3V 1.3Ah 3.9Wh 22g 1/3 C size UB0006 TDS
UB1426 3V 0.5Ah 1.5Wh 10g ½ AA size UB1426 TDS
UB1733 6V 0.5Ah 3Wh 20g 33.5mm L x 16.8mm dia. UB1733 TDS
UB0009 6V 11.1Ah 66.6Wh 390g 128.5mm L x 35.5mm dia. Same as UB2777 but with CDD (complete discharge device). UB0009 TDS
UB2777 6V 11.1Ah 66.6Wh 390g 128.5mm L x 35.5mm dia. Same as UB0009 but without CDD (complete discharge device). UB2777 TDS
UB2776 12V 1Ah 12Wh 76g 76.2mm L x 23.9mm dia. UB2776 TDS
