A-320V3A-MKT

30-512 MHz Amplifier Kit with Battery & Charger

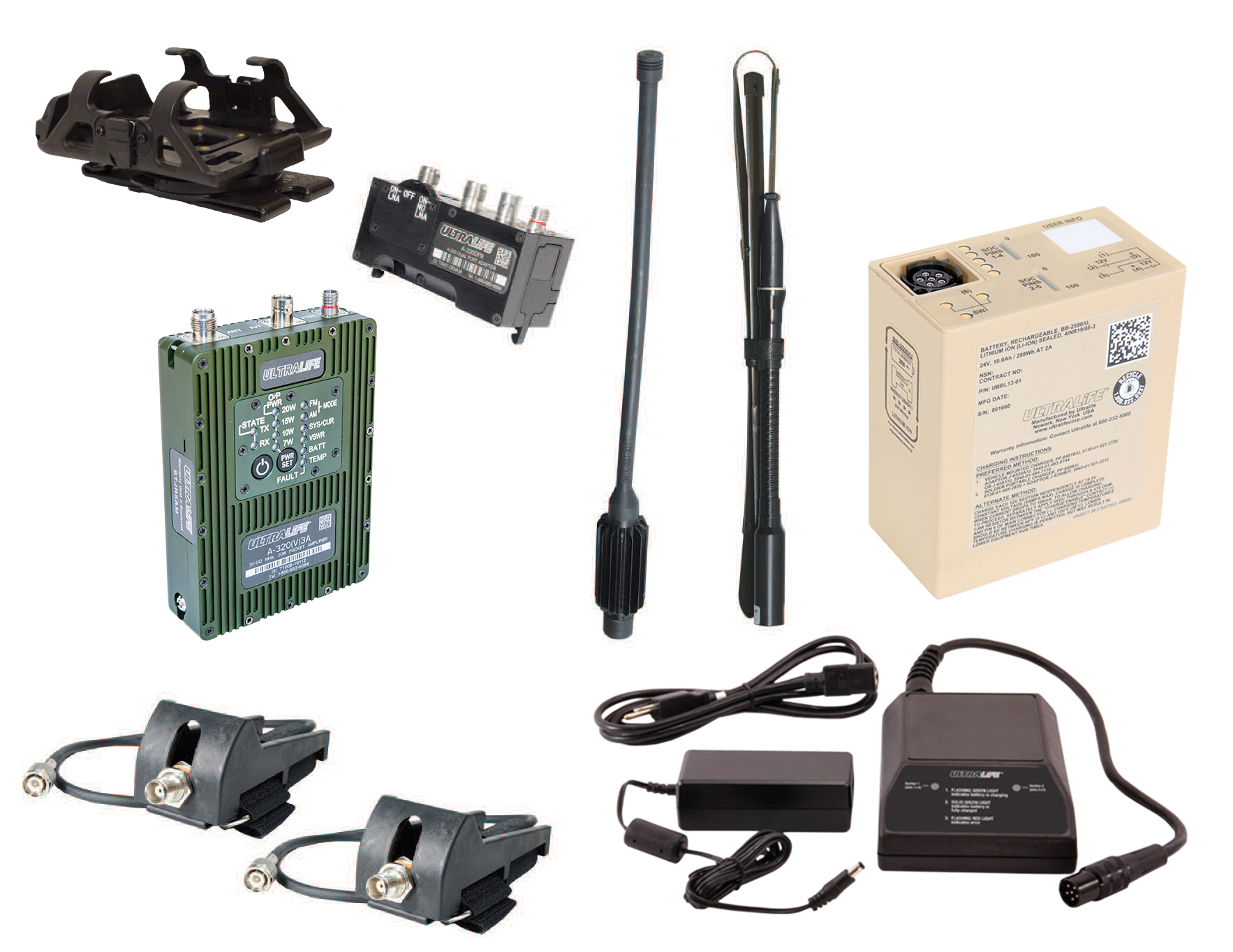

A-320V3A-MKT productUltralife’s A-320V3A (30-512 MHz) amplifier accepts DC power from a single XX90 type battery or any 22-34 VDC power source.

This kit includes Ultralife’s high capacity rechargeable UBI-2590 battery (UBBL13-01), as well as a desktop charger (CH0002), providing the perfect solution for dismounted soldiers without access to vehicular power.

Included Amplifier

A-320V3A

Dual Port Adapter

A-320DPA

Multiband Antenna

90-512 MHz

Blade Antenna

30-108 MHz

Radios Supported

  • SINCGARS
  • Wideband Networking Handheld Radio
  • Tactical Handheld Radio
  • Multi-Channel Handheld Radio
  • Team Radio
  • Multiband Intra Team Radio
  • Tactical Handheld Radio
  • Combat Net Radio

All RF Amplifiers

Related Products

Product Type: Kit, Man Portable
Certifications: MIL-STD-810F, MIL-STD-461E
Frequency Range: 30 to 512 MHz
RF Input: 5 watts
RF Output FM: 20 watts
RF Output: 20 watts
Radio Type: AN/PRC-119, AN/PRC-148, AN/PRC-152, MBITR II, RT-1523E

Kit Components:

  • A-320V3A amplifier
  • 90-512 MHz multiband antenna
  • 30-108 MHz blade antenna
  • Quick-release amplifier holder
  • Antenna relocator x2 (incl. cable from amplifier to antenna)
  • Power cable
  • RF cable (amplifier to radio)
  • A-320DPA dual port adapter with LNA
  • UBBL13-01 UBI-2590 rechargeable battery
  • CH0002 desktop charger
  • MOLLE vest adapter

A-320V3A Amplifier Features:

  • 30-512 MHz
  • Supports modern waveforms:
    • SRW (Soldier Radio Waveform)
    • EPLRS (Enhanced Position & Location Reporting System)
  • AM operation
Included

  • 20W Amplifier (Part number: A-320V3A)
  • 90-512 MHz Multiband Antenna (Part number: A-320-A03)
  • RF Jumper Cable – RF Connector RAD/ANT BNC/TNC female) Part number: A-320-A04)
  • Power Cable for XX90 Battery (Part number: A-320-A05)
  • Pocket Amplifier Holder (Part number: A-320-A13)
  • Mesh relocator kit (Part number: A-320-A15)
  • 30-108 MHz Antenna (Part number: LPAS-320-A04)
  • Dual Port Adapter (Part Number: A-320DPA)
  • UBI-2590 Rechargeable Battery (Optional Part Number: UBBL13-01)
  • CH0002 Desktop charger for UBI-2590

Additional Options

  • UBI-2590 Rechargeable Battery (Optional Part Number: UBBL02-01)
  • UBI-2590 Rechargeable Battery (Optional Part Number: UBBL10-01)
  • Desktop Charger Kit (Optional Part Number: CH0002)
  • Smart Charger for Shipping XX90 Series by Air (Optional Part Number: UCH0057-01)
  • Six-Bay Charger for Shipping XX90 Series by Air (Optional Part Number: UCH0071)
  • 2-Bay Tactical Charger for XX90 Batteries (Optional Part Number: CH0004)
  • 6-Bay Tactical Charger for XX90 Batteries (Optional Part Number: CH0003)
  • BA-5390A/U LiMnO2 Non-rechargeable Battery (Optional Part Number: UB0023)
  • UBI-5390XC LiMnO2/CFx Non-rechargeable Battery (Optional Part Number: UB0032)
