A-2303-KT1

30-512 MHz Amplifier Kit for use with Wearable Batteries

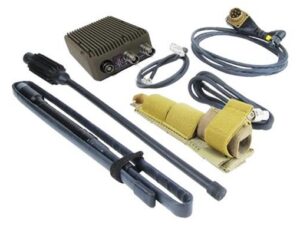

A-2303-KT1 productThe A-2303 is the latest amplifier in Ultralife’s long and successful history of RF amplifier development.

The A-2303-KT1 combines the amplifier with a range of accessories to provide a complete solution for use with Ultralife’s Wearable Batteries (formerly Land Warrior and CWB).

Designed to support both mounted and dismounted operations, the kit includes the essential RF, power, mounting, and antenna accessories required for rapid deployment.

For amplifier customers using Ultralife’s XX90 Batteries (Rechargeable and Non-Rechargeable), the A-2303-KT2 provides an equivalent kit configured for that power source.

Included Amplifier

A-2303

Cable

For Wearable Batteries

Multiband Antenna

90-512MHz

VHF Antenna

30-88MHz

Radios Supported

  • Legacy VHF/UHF Tactical
  • SINCGARS
  • Wideband Networking Handheld Radio
  • Tactical Handheld Radio
  • Multi-Channel Handheld Radio
  • Team Radio
  • Multiband Intra Team Radio
  • Tactical Handheld Radio
  • Combat Net Radio
  • Personal Role Radio PRR

All RF Amplifiers

Related Products

Certifications: MIL-STD-810F, MIL-STD-1275, MIL-STD 461
Frequency Range: 30 to 512 MHz
RF Input: .75 to 5 watts
RF Output: FM 20 watts
RF Output: 20 watts

Kit Components:

  • A-2303 RF Amplifier
  • Power Cable for Ultralife’s Wearable Batteries (formerly Land Warrior and CWB)
  • 90-512MHz Multiband Antenna
  • 30-108MHz VHF Antenna
  • Mesh Antenna Relocator Kit (includes holder and antenna cable)
  • RF Jumper Cable (Radio to Amp) – 30 inches with TNC/TNC connectors
  • MOLLE Mount

Other Variant:
A-2303-KT2 for use with Ultralife’s XX90 Batteries (Rechargeable and Non-Rechargeable)

Included

  • 20W Amplifier (Part number: A-2303)
  • Lightweight Wearable Battery Power Cable (Part number: CS-1013102)
  • 90-512 MHz Multiband Antenna (Part number: A-320-A03)
  • 30-108 MHz Antenna (Part number: LPAS-320-A04)
  • RF Cabling 30″ TNC-TNC (Radio-Amp) (Part number: 0670-000-703)
  • Mesh Relocator Kit (Part number: A-320-A15)
  • Molle Mount (Part number: CS-1010005)

Additional Options

  • Next-Gen Conformal Body-Worn Battery (CWB) (Optional Part Number: UBBL72)
  • First-Gen Conformal Body-Worn Battery (CWB) (Optional Part Number: UBBL35)
  • 103.4Wh Lightweight Wearable Battery (Optional Part Number: UBBL08-01)
  • 173.3Wh Lightweight Wearable Battery (Optional Part Number: UBBL06-01)
  • 195.8Wh Lightweight Wearable Battery (Optional Part Number: UBBL06-02)
  • Smart 2-Bay Charger for Shipping Lightweight Wearable Batteries by Air (Optional Part Number: UCH0072)
  • Smart 8-Bay Charger for Shipping Lightweight Wearable Batteries by Air (Optional Part Number: UCH0070)
  • 3-Bay Vehicle Charger Kit (Optional Part Number: UCH0041)
  • Desktop Charger (Optional Part Number: CH0015)
  • Soldier Based Charger (Optional Part Number: CH0008)
