Lead Acid Alternative

Lightweight, cost and space efficient batteries.

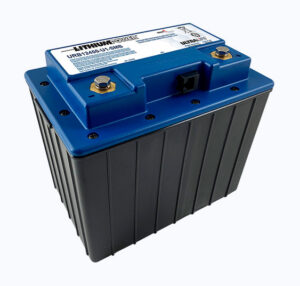

Lead Acid Alternative products

  • ULTRALIFE’s rechargeable Lithium Iron Phosphate (LiFePO4) batteries are available in voltages ranging from 6.4 to 25.6V. They can be connected in series or parallel to customize voltage or capacity.
  • Three times lighter than Sealed Lead Acid; batteries of the same capacity weigh 33lbs (15kg) compared to 100lbs (45kg).
  • Offering a long service life, LiFePO4 batteries last for up to 2,000 cycles compared to 300 to 500 for Sealed Lead Acid.
  • For underwater applications (like AUVs, ROVs or oil and gas), ULTRALIFE offer smart subsea Lithium-ion

Voltage (Range)

12.8V – 25.6V

Capacity (Range)

4.5Ah – 102.6Ah

Energy (Range)

28.8Wh – 1645.9Wh

Weight (Range)

0.36kg – 34.9kg

Product Nominal Voltage Rated Capacity Rated Energy Weight Size Note Tech Data Sheet
URB0001-SMB 25.6V 100Ah 2560Wh 34.9kg 340.4mm L x 541mm W x 228.6mm D URB0001-SMB TDS
URB0014-SMB 25.6V 100Ah 34.9kg 340.4mm L x 541mm W x 228.6mm D URB0014-SMB TDS
URB0023-01 25.6V 64.8Ah 1645.9Wh 15.9kg 445.7mm L x 438.1mm W x 84.2mm D Stackable up to 6 units high URB0023-01 TDS
URB0025 12.8V 5.6Ah 71.7Wh 820g 108mm L x 60mm W x 64mm D URB0025 TDS
URB121000 12.8V 102.6Ah 1313.3Wh 13.6kg 212mm L x 342mm W x 173mm D URB121000 TDS
URB12200 12.8V 21.6Ah 276.5Wh 2.7kg 151mm L x 181mm W x 76mm D URB12200 TDS
URB12350 12.8V 38Ah 486.4Wh 4.6kg 171mm L x 195mm W x 127mm D URB12350 TDS
URB12450-U1-SMB 12.8V 45.6Ah 583.7Wh 5.5kg 182.1mm L x 208.5mm W x 136.4mm D URB12450-U1-SMB TDS
URB12550 12.8V 57Ah 729.6Wh 7.7kg 200mm L x 257mm W x 132mm D URB12550 TDS
URB1270 12.8V 7.6Ah 97Wh 1.1kg 92mm L x 152mm W x 65mm D URB1270 TDS
URB24200 12.8V 20Ah 512Wh 8.1kg 160mm L x 195mm W x 132mm D URB24200 TDS
URB6450 12.8V 4.5Ah 28.8Wh 360g 100mm L x 70mm W x 48mm D URB6450 TDS
URB-X5 12.8V 21.6Ah 276.5Wh 3.67kg 317mm L x 120.5mm W x 75.5mm D URB-X5 TDS
