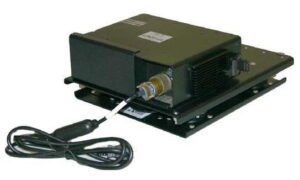

MRC-187

Transceiver Power Supply, AC/DC, Wide Form Factor

MRC-187 productThe MRC-187 incorporates a state-of-the-art rechargeable Nickel MetalHydride Battery (BB-390) to provide long life battery operation in addition to worldwide power applications for a number of transceivers presently fielded by the U.S. military:

  • AN/PRC-117F Transceiver
  • AN/PRC-138 Series Transceivers
  • AN/PRC-150 Series Transceivers
  • AN/PSC-5D MBMMR Transceiver
  • AN/PSC-5 Series Transceivers

Compatible Radios

PRC-117F & 150, PSC-5

Function

Power Supply & Charger

Input

9–36VDC / 95–265VAC

Battery

Internal BB-390

Radios Supported

  • Multiband Networking Manpack Radio
  • Wideband HF/VHF Manpack Radio
  • SINCGARS
  • Tactical Manpack Radio
  • Combat Net Radio
  • Multi-Channel Manpack Radio

All Power Supplies

Related Products

Weight 4.6 lbs
DC Input 9 to 36 VDC
DC Output 26.5 VDC
Operating Temperature -30 to 55 °C
Storage Temperature -50 to 65 °C
Operating Altitude 27,000 ft
Storage Altitude 55,000 ft
AC Input 95 to 265 VAC
Radio Type AN/PRC-138, AN/PSC-5, AN/PRC-150, AN/PSC-5D

Vehicle communications.

  • Rechargeable operation with ACand DC power modules sized to allow transceiver operation
  • Wide range of AC and DC input voltages allows for global application
  • External 25.6 VDC output for amplified speakers or other 26.5VDC applications
  • Internal BB-390 battery allows operation of transceiver
  • Can recharge battery while transceiver operating
Included

  • AC Input Cord 6ft (Included Part number: PCP-35-00-01)
  • DC Input Cord (Included Part number: PCP-40-00-01)

Additional Options

  • DC Input Y Cable (Optional Part number: PCP-257V)
  • DC Automobile Adapter 6ft (Optional Part number: PCP-55-00-01 Auto)
  • NATO input cable (Optional Part number: PCP235)
