WKW-7

Transceiver Power Supply, AC/DC, Wide Form Factor

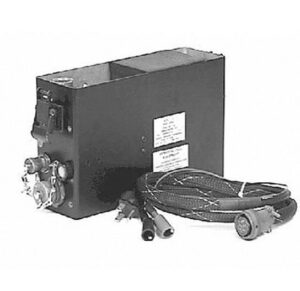

WKW-7The WKW-7 is a power adapter with provisions for a MRC-490(V1) sealed lead-acid Battery and charger connecting directly to the transceiver. The unit requires an external, regulated DC power source to power the transceiver. DC input power is filtered and used to maintain the internal sealed lead-acid battery (MRC-490 (V1).

Common Applications

  • AN/PSC-5 Series Transceivers
  • AN/PRC-113 Series Transceivers
  • AN/PRC-117F Transceiver
  • AN/PRC-138 Series Transceivers
  • AN/PRC-150 Transceiver
  • AN/URC-200 Series Transceivers

Compatible Radios

PRC-117F & 150, PSC-5

Function

Power w/ Battery Backup

Input Voltage

22–30VDC

Battery

MRC-490 Included

Radios Supported

  • Tactical Manpack Radio
  • Encryption Unit
  • Manpack Transceiver
  • Tactical Manpack Radio
  • Combat Net Radio

All Amplifiers

Related Products

Weight: 1.6 lbs
DC Input: 22 to 30 VDC
DC Output: 26.5 VDC
Operating Temperature: -30 to 55 °C
Storage Temperature: -50 to 65 °C
Operating Altitude: 27,000 ft
Storage Altitude: 55,000 ft
Radio Type: AN/PRC-138, AN/PSC-5, AN/PRC-150, AN/PSC-5D

Key Features

  • Input voltage (22-30VDC@7 amps) is filtered and used to maintain the internal sealed lead-acid battery
  • Internal battery allows operation of transceiver independently of external power source
  • Will recharge while transceiver is operating
  • External auxiliary output for amplified speakers or other 26.5 VDC requirementsUnit ships complete with internal MRC-490 sealed lead- acid battery
  • WKW-7 Technical Datasheet

DC Input Cable

Included Part number: PCP-120
