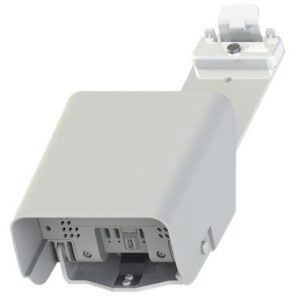

X5-SuperLite USB-C Charging Solution
Power USB-C tablets, laptops, and mobile devices from hot-swappable batteries
- For pole and mobile carts that need to power USB-C devices such as iPads, tablets, laptops, and notebook PCs, Ultralife has developed the X5-SuperLite. Using Ultralife’s 276.5Wh URB-X5 hot-swappable battery, a single X5-SuperLite can power up to two devices simultaneously.
- Additional X5-SuperLite units can be added to power more devices at the same time. Multiple X5-SuperLites can be daisy chained to increase available energy and extend runtime.
- An optional Hold-Up Battery (HUB) maintains uninterrupted power during battery replacement or while connecting an alternative USB-C power source or charger. The HUB can provide up to 100W of backup power for up to 5 minutes.
- Where multiple X5-SuperLites are deployed, Ultralife’s State of Charge Indicator (SOCI) provides a convenient way to monitor the charge status of each battery at a glance.
Output Voltage
5V-28V
Power
140W max.
Weight
0.5kg
Compatible Battery
URB-X5
| Product | Output Voltage | Rated Capacity | Energy/Power | Weight | Size | Note | Tech Data Sheet |
|---|---|---|---|---|---|---|---|
| UCA-X5-3USBC | Between 5V & 28V | N/A | Up to 140W | 0.5kg | 360.8mm L x 129.9mm W x 95.4mm D | Battery Charger – USB-C IN & 2x USB-C OUT | UCA-X5-3USBC TDS |
| URB-X5 | 12.8V | 21.6Ah | 276.5Wh | 3.67kg | 317mm L x 120.5mm W x 75.5mm D | Hot-Swap Battery | URB-X5 TDS |
| URB003S | 10.2V | 2Ah | 20.4Wh | 200g | 68mm L x 41mm W x 41mm D | Optional Hold-up Battery | URB003S TDS |
| URX-X5-SLITE | N/A | N/A | N/A | TBC | 56mm L x 100mm W x 22mm D | State-of-Charge Indicator Pendant | URX-X5-SLITE TDS |
