MRC-UPU0006 and -01

Transceiver Power Supply, AC/DC, Small Form Factor

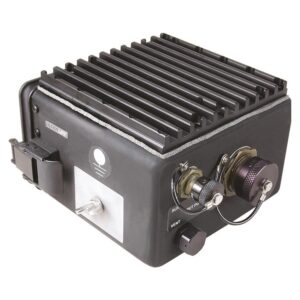

MRC-UPU0006 and -01 product
The MRC-UPU0006 series uninterruptible power supplies are designed specifically for the AN/PRC-117G radio. The MRC-UPU0006 features threaded standoffs on the bottom face of the unit. The power supply is also available without the standoffs (model MRC-UPU0006-01). Like the MRC-UPU0003, the UPU0006 series feature simple arm/disarm toggle switches that removes the load from the internal battery when in the “disarm” position.

Virtually any AC or DC power source is compatible with this power supply making it an ideal solution for providing uninterrupted power, anywhere. When used with the AN/PRC-117G at an 8:1:1 duty cycle, the unit provides greater than 3 hours run time. Like all Ultralife power supplies, this series is 85-250VAC/47-440 Hz ready, and has the ability to be powered from virtually any DC input source likely to be encountered in military and/or commercial vehicles. Each is MIL-STD-461E for EMI compliance and MIL-STD-810 compliant.

Two cables are provided: PCP-35 AC Input Power Cord and PCP-65 DC Input Power Cord.

Compatible Radio

PRC-117G

Function

Uninterruptible Power

Mount

Varies by Variant

Sold Separately

MRC-67A Speaker

Radios Supported

  • Multiband Networking Manpack Radio
  • Wideband HF/VHF Manpack Radio
  • SINCGARS
  • Tactical Manpack Radio
  • Combat Net Radio
  • Multi-Channel Manpack Radio

All Power Supplies

Related Products

Weight 5 lbs
DC Input 10 to 36 VDC
DC Output 26 VDC
Operating Temperature -30 to 60 °C
Storage Temperature -40 to 71 °C
Operating Altitude 15,000 ft
Storage Altitude 40,000 ft
AC Input 85 to 250 VAC
Accessories (Included) MRC-67A
Radio Type AN/PRC-117G

  • Wide range of input voltages
  • Lightweight – 5 lbs. nominal
  • Rear-mounted connector
  • Available with threaded standoffs
  • Simple arm/disarm toggle key
  • Self-contained operation
  • 3-year warranty (UPU unit-internal battery 1-year warranty)
Included

  • AC Input Cord 6ft (Included Part number: PCP-35-00-01)
  • DC Input Cord 6ft (Included Part number: PCP-65-00-01)

Additional Options

  • DC Automobile Adapter 6ft (Optional Part number: PCP-55-00-01 Auto)
  • DC Power Cord 12ft (Optional Part number: PCP-40-00-144)
  • NATO Power Cord (Optional Part number: MRC143A-07-02)
  • Amplified Speaker (Optional Part number: MRC-67A)
